BMF series Horizontal Mixed Flow pumps

Applications:
• Irrigation
• Industrial Applications
• Drainage
• Shrimp Ponds
• Flooding

SPECIFICATIONS:
Speed: 1750rpm(max)
Capacity: 420m3/h—4800m3/h
Head:10m—45m
Size: DN250—DN600
Working Condition:
Generally it is 1Mpa and Temperature of water≤80℃

Application Std： Flange std can be BS,DIN,ISO,etc

Product Detail

Product Tags

Remarks:
We have been OEM for many brands from Europe and our pumps has been used by famous brands BMF series is used widely for the irrigation.

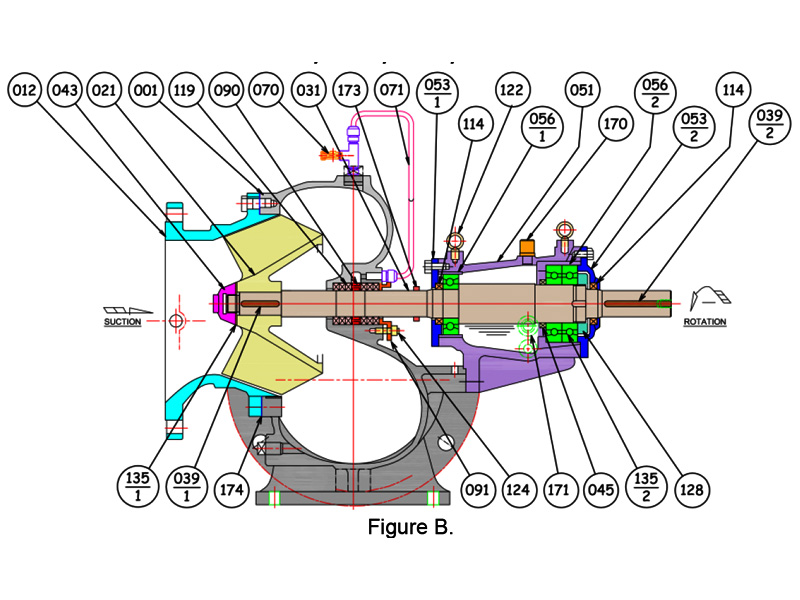

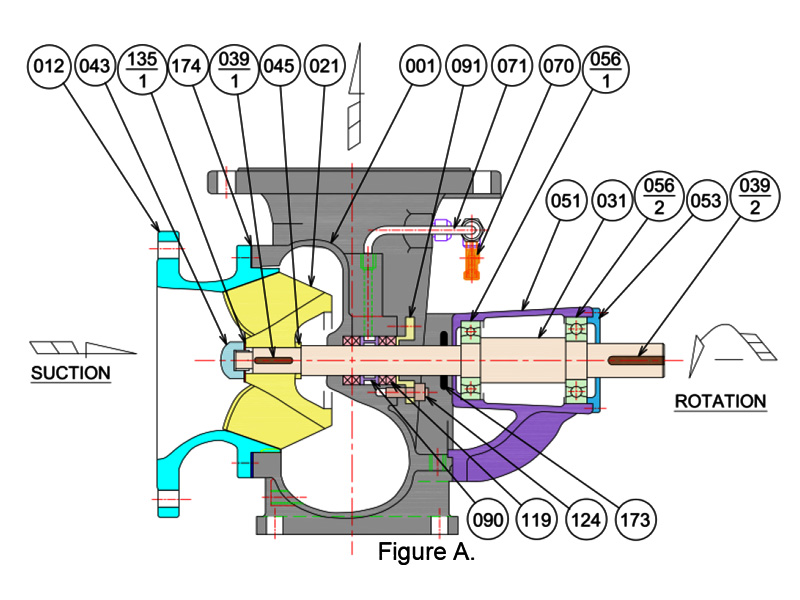

Constructure

No.	Part Name	Material	Qty/Unit
001	Casing	FC250	1
012	Suction Cover	FC250	1
021	Impeller	FC200	1
031	Shaft	S35C-N	1
039-1	Impeller Key	S45C	1
039-2	Pulley Key	S45C	1
043	Impeller Nut	FC200	1
045	Distance Ring	SS400	1
051	Bearing Housing	FC200	1
053-1	Bearing Cover	FC200	1
053-2	Bearing Cover	FC200	1
056-1	Ball Bearing		1
056-2	Ball Bearing		1
070	Air Vent		1 Set
071	Flushing Pipe		1 Set

No.	Part Name	Material	Qty/Unit
090	Lantern Ring	BC6	1
091	Gland	BC6	1
114	Oil Seal		2
119	Gland Packing	#6501L	1 Set
122	Eye Bolt	S20C	2
124	Gland Bolt	BS BMD2	2
128	Bearing Nut	SS400	1
135-1	Impeller Washer	Brass	1
135-2	Bearing Washer	SS400	1
170	Air Breather		1
171	Oil Level Gauge		1
173	Deflector	SS400/NR	1
174	Sheet Gasket	Valqua	1

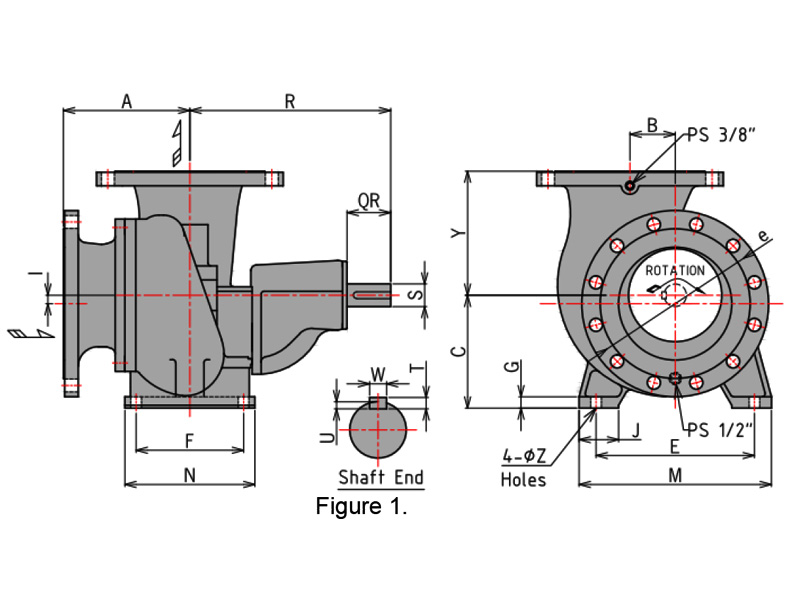

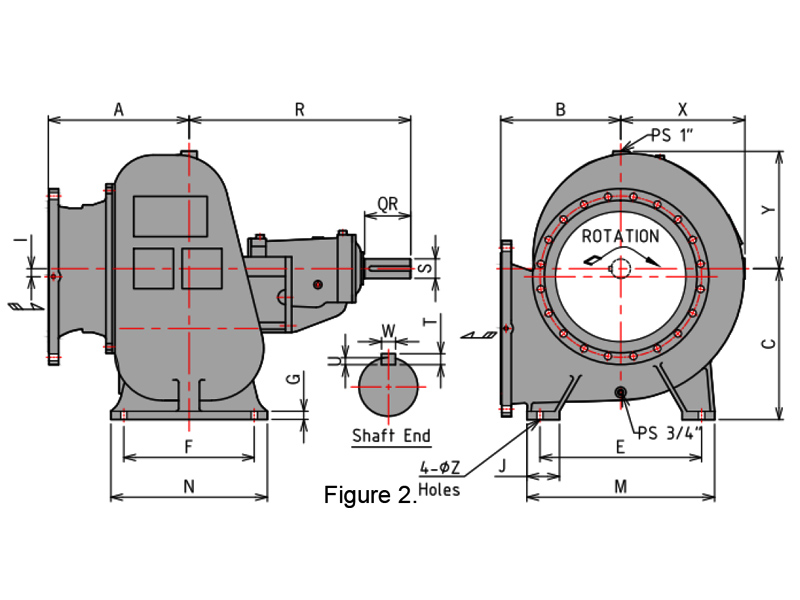

MODEL	FLG.	PUMP DIMENSIONS														SHAFT DIMENSIONS					PUMP WEIGHT
MODEL	FLG.	A	R	B	C	I	E	F	G	J	M	N	X	Y	Z	S	QR	T	U	W	kg
200SZ	1	224	355	80	200	15	280	190	20	70	340	230	-	220	19	40	77	8	4.5	10	136
250SZ	1	289	380	100	240	15	330	235	22	80	400	280	-	260	19	40	78	8	4.5	10	145
300SZ	1	341	590	135	360	25	330	290	24	75	400	350	-	280	24	48	124	8	4.5	12	271
300SZ	2	341	590	280	360	25	330	290	24	75	400	350	280	257	24	48	124	8	4.5	12	220
350SZ	1	391	680	155	350	20	430	350	26	105	520	420	-	330	24	55	153	8	4.5	12	325
350SZ	2	391	680	330	420	20	410	350	26	90	490	420	330	307	24	55	153	8	4.5	12	310
400SZ	2	430	770	370	470	25	490	410	28	100	570	480	381	364	26	65	180	10	5	15	497
500SZ	2	540	850	460	580	31	620	500	32	125	720	600	476	451	26	75	180	12	6	18	840

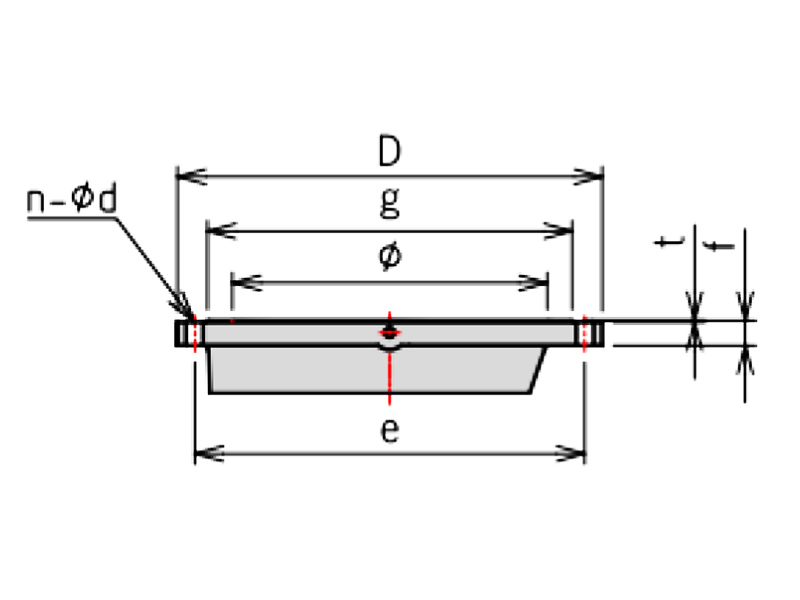

FLANGE DIMENSIONS (JIS 10K)
Size	D	g	e	n-Φd	T	f
200 (8”)	330	265	290	12-Φ23	26	2
250 (10”)	400	325	355	12-Φ25	30	2
300 (12”)	445	370	400	16-Φ25	32	3
350 (14”)	490	415	445	16-Φ25	34	3
400 (16”)	560	475	510	16-Φ25	36	3
500 (20”)	675	585	620	20-Φ27	40	3
