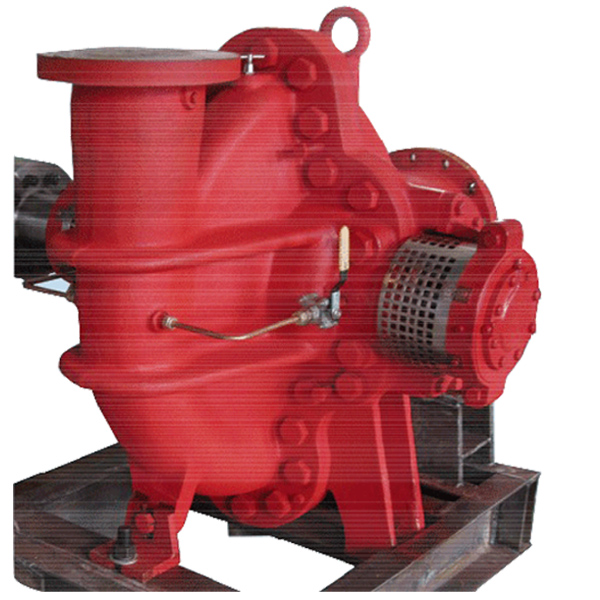

FiFi Fire Fighting pumps


Product Detail

Product Tags

Classification

Fire fighting1 (or 2 or 3) are class notations granted to vessels built and equipped in compliance with therelevant class requirements. We supply external Fire Fighting Systems for AHTS, AHT, PSV, FPSO,FSO, Offshore Vessels, Platforms, Maintenance Vessels, Supply Vessels, Fire Fighting Vessels, Escort
Tugs, Tugs, etc. With CCS, BV, ABS, DNV and other classification Certificate.



The following matters are covered by the classification:
1.1. The vessel’s fire fighting capability.
1.2. The vessel’s stability and its ability to keep position when the fire fighting monitors are in operation.
1.3. The vessel’s ability for self protection.

Water spray system (For FIFI1-FIFI3)
Deck Discharge Head(For FIFI2-FIFI3)
Mobile high expansion foam generator(For FIFI3)
Class Notation FIFI 1/2 FIFI1 FIFI2 FIFI3
No. of Monitors 1 2 2 2 3 4 3 4
Monitor Capacity
(M3/H)
120
0
600 1200 3600 2400 1800 3200 2400/2500
No. of Pumps 1 1-2 2 2-4 2 2-4
Tot. Pump
Capacity (M3/H)
1200 2400 7200 7200 9600 9600/1000
Throw Length (M) 120 120 180(FRO
M BOW)
150 180(FRO
M BOW)
150
Throw Height(M) 45 45 110AT
70M
70 110AT
70M
70

EngineType

PTO type marine fire pump sets
 FIFI-1 Fire pump coupled with speed-up gearbox is
installed in a common base frame, froming water
supply unit for external vessel is driven via mian
engine front PTO and fabricated according to the
requirem nt of FIFIclass.
Flow: 600~3600m3/h
Input speed: 460~1600rpm
Total head: 110~180m
XBC type Diesel engine fire pump sets
 FIFI-2 Fire pump is driven by dedicated diesel engine. We
can choose different pumps meeting different
piping arrangement and work conditions.
Cooling or starting type of diesel engine can be
selected on request: water cooling/air cooling,
electric start/ compressed air start.
Flow:  360~2400m3/h
Input speed:  1500~2100rpm
Total head:  120~180m
FirePumpSeries
FIFI-3

End Suction Top Discharge Type

FIFI-4

Side Suction Top Discharge Type

Material:
Pump shell Nodular cast iron/ casting iron
Impeller Ni-Al-bronze/bronze
Shaft Stainless steel
Model Capacity
(m3/h)
Head
(m)
Speed
(r/m)
NPSH
(m)
Power
absorbed
(kw)
Rated
Power
(KW)
Efficiency
(%)
350CXB300-565 1500 140 1800 4.5 715 850 79
350CXB300-565(A) 1200 140 1800 3.5 587 700 78
300CXB250-565 1000 140 1800 3 496 600 77
300CXB250-565(A) 800 140 1800 2.5 410 500 75
250CXB200-565 600 140 1800 2.5 314 400 73
200CXB150-565 400 140 1800 2.5 218 275 70
200CXB150-565(A) 300 140 1800 2.5 164 200 70

FireMonitorSeries

FIFI-5

Manual Water Monitor

FIFI-6

Manual Foam/Water Monitor

FIFI-7

Electric Water Monitor

FIFI-8

Hydraulic High Pressure Monitor

FIFI-9

Double Pipe Fire Monitor

FIFI-10

Self-priming Fire Monitor

TheOtherEquipments

FIFI-11

Around The Pump Foam Proportioner

FIFI-12

Balanced Foam Proportioning Equipment

FIFI-13

Around The Pump Foam Proportioner

FIFI-14

Balanced Pressure Foam Proportioner

FIFI-15
FIFI-16
FIFI-17
FIFI-18

PSU Movable Type Fire Fighting Skid

The integral movable fire fighting skid is featured by automatic water suction, easy fixing, fast handling. Having the functions of cooling, foam and remote automatic taking water, it is suitable for external fire fighting auxiliary operation. It is also flexible and convenient to remove.
Max. flow rate: 1200m3/hr
Max. total head: 160m
Horizontal rotation: ±170°
Vertical rotation: +15°~+75°(adjustable)
PHP_B type proportioner shall be installed in the inlet of fire monitor. Certain amount of foam concentrate is injected into the proportioner through the foam pump driven by the front part of engine. Foam pump can resist dry friction for 10minutes, convenient to draw directly foam concentrate from all kinds of foam container, regardless of seal damage because of pump idling.
Monitor is equipped with air foam pipe suitable for all kinds of foam solution.

Type PSU360 PSU600 PSU1200
Pump flow (m 3 /hr) 360 600 1200
Pump lift (m) 120 120 130
Medium Sea water or fresh water
Engine power (HP) 300 400 800
Starting mode Start by 24VDC electric motor
Cooling mode Air cooling Sea water Sea water
Constant supply time for
fuel
2 hours 2hours 90minutes
Monitor model PL100 PSKY180 PSKY330
Operating mode for
monitor
manual manual/
hydraulic
manual/
hydraulic
Monitor throw range (m) ≥90 ≥100 ≥135
Monitor recoil (KN) 4.9 8.1 16.9
Quick coupling 4 X KY65 4 X KY65 /
Foam proportioner PHP80B PHP80B /
Movable
foam equipment
one portable foam monitor PLY48 /
Skid form Vehicle-
mounted
Semi-
stationary
Semi-
stationary
Skid shell open open closed
Protection equipment Dry powder fire
extinguisher
Dry powder fire
extinguisher
CO 2  system
Weight (kg)~ 2500 2700 7000
Outline
dimensions
(mm)~
length 3500 3200 5500
width 1400 1400 2400
height 2400 2300 3000
