BG series Vacuum assisted selfpriming Pumps – Beken Detail:

Remarks:
We have been OEM for many brands from Europe and USA

Constructure

How Dri-Prime ® Works


BG series Vacuum assisted selfpriming Pumps-2

The secret to the reliability of Dri-Prime pumps is the automatic self-priming system.

Compressed air (1) travels through the
venturi (2) creating a vacuum by evacuating air from
the pump body and suction hose (3), while the
non-return valve ball (4) seals out air from the
discharge, allowing fluid to enter the pump body (5)
and begin pumping automatically.

Diesel Dri-Prime CD Series

High Volume, Medium-Head, Large
Solids-Handling Capabilities
• Flow: 0 – 16,500 gpm
• Head: 95 – 280 ft

OPTIONS INCLUDE
• 316 or CD4MCu stainless steel pump-end construction for high and low pH applications
• Highway trailer or skid mount, both incorporating integral overnight running fuel tanks
• Sound attenuated enclosures


BG series Vacuum assisted selfpriming Pumps-1

Elevated Head, Solids Handling

CD75MA5 CD80M CD80M CD100M CD103M CD150M CD200M
Branch Size (in) 2×2/3×3 3×3 3×3 4X4 4X4 6X6 8X8
Flow Range (gpm) 0–300 0–350 0–350 100-750 300-1000 700-2,080 800-2,300
Max Total
Dynamic Head (ft)
105 135 95 125 175 160 160
HP@RPM 17@3,000 20@3,000 18@2,200 30@2,200 46@2,200 74@2,200 74@2,200
Solids
Handling (in)
1  5 ⁄ 8  1  5 ⁄ 8  1  5 ⁄ 8  1  3⁄4 3 3 3
Impeller
Diameter (in)
6  3 ⁄ 4  6  9⁄16  7  1 ⁄ 2  9  1 ⁄ 16  10  1 ⁄ 16  11 11
Standard Mount Trailer Trailer Trailer Trailer Trailer Trailer Trailer
Height (in) 70 70 70 70 77 77 77
Length (in) 102 102 102 102 119 119 119
Width (in) 54 54 54 54 66 66 66
Wet Weight (lb) 1,770 1,770 1800 2100 2830 3630 3690
Performance Curve A B C D E F G

Diesel Dri-Prime HL Series

High-Head and Jetting Pumps with
Solids-Handling Capabilities
• Flow: 0 – 5,300 gpm
• Head: 320 – 630 ft


OPTIONS INCLUDE
• 316 or CD4Mcu stainless steel pump-end construction for high and low pH applications
• Highway trailer or skid mount, for overnight running with fuel tanks
• Sound attenuated enclosures

BG series-10
Elevated Head, Solids Handling

HL80M HL100M HL125M HL150M HL200M
Branch Size (in) 4×3 4×4 6×4 6×6 8×6
Flow Range (gpm) 0-450 300-800 300-1000 500-1,450 800-2,300
Max Total
Dynamic Head (ft)
330 380 450 505 320
HP@RPM 74@2400 99@2200 156@2,400 220@2400 225@2000
Solids
Handling (in)
1 1  3⁄ 8  1  3⁄ 8  1  3⁄ 8  1  1⁄ 2
Impeller
Diameter (in)
12  13⁄ 16  14  9⁄16  14  9⁄ 16 15  3 ⁄ 16  15  3⁄ 4
Standard Mount Trailer Trailer Skid Base Skid Base Skid Base
Height (in) 77 93 84 87 84
Length (in) 119 155 147 147 147
Width (in) 66 76 53 55 55
Wet Weight (lb) 3,380 5,070 6,410 7,450 7,620
Performance Curve A B C D E

Extreme High-Head

HL225M HL250M HL110M HL130M HL160M HL260M
10×8 12×10 4×3 6×4 8×6 10×10
1,500-3,600 2,500-5200 200-600 400-1,300 400-2,000 1,500-5,300
380 405 615 630 620 480
300@2000 475@2000 156@2200 300@2100 475@2000 700@1800
1  1⁄2  2  1⁄2   3⁄ 4  7⁄ 8 1  3⁄ 8  2
17  5⁄ 16  17  5⁄16  18  5⁄ 16 20  1 ⁄ 4  20 21  1 ⁄ 4
Skid Base Skid Base Skid Base Skid Base Skid Base Skid Base
97 95 84 97 95 99
152 162 147 153 162 168
62 70 53 60 67 79
10,560 14,030 6,740 10,490 14,040 17,550
F G H I J K

Product detail pictures:

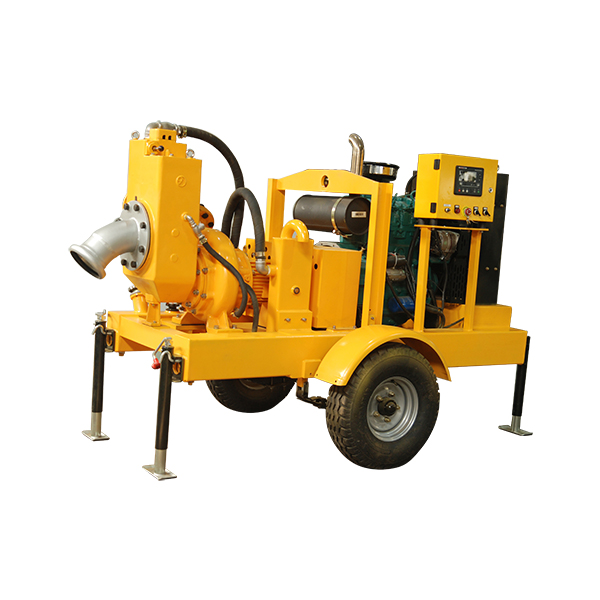

BG series Vacuum assisted selfpriming Pumps – Beken detail pictures

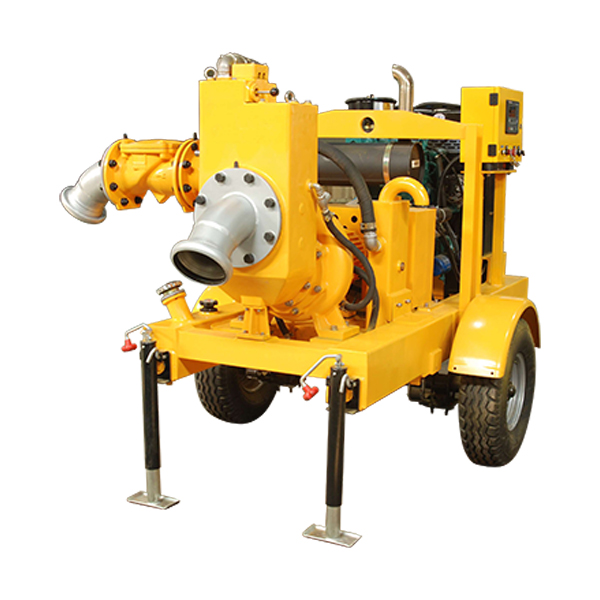

BG series Vacuum assisted selfpriming Pumps – Beken detail pictures

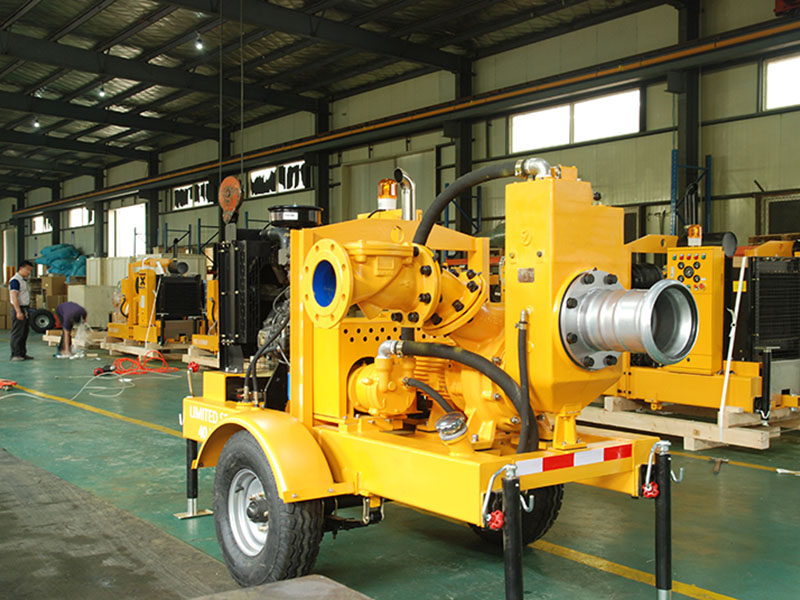

BG series Vacuum assisted selfpriming Pumps – Beken detail pictures
